Description

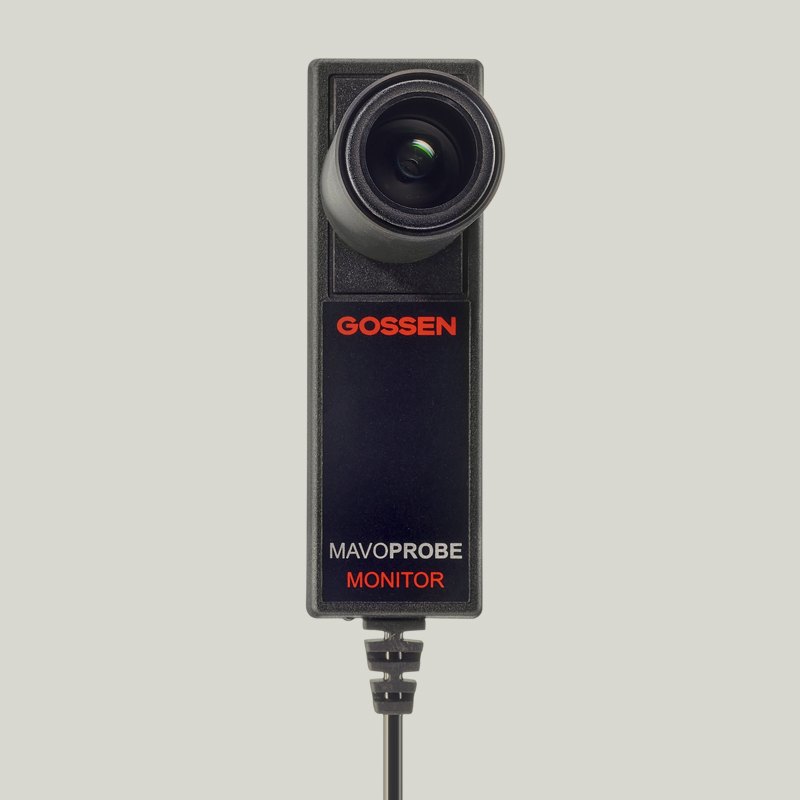

MAVOPROBE MONITOR
MEASURING FUNCTIONS
| Illuminance | 0.001 cd/m² … 19 999 cd/m² / 0.0001 fL … 1999 fL |
| Sampling rate | 2/s |
| Measuring methode | contact |
| Measuring sensor | Silicon photodiode with V(λ) filter |
| Probe with ¼“ tripod thread |
• |
| Probe connector cable | 1.5 m, plug-in, Binder series 711 plug, 5-pin |
| Compliance with the Standards |
DIN 5032-7 class B / DIN EN 13032-1 appendix B / ISO CIE 19476 |
| Characteristic value – V(λ) matching (f1‘), typical | < 3 % |
| Temperature dependence | < 0,1%, temperature compensated |
| Accuracy | ± 2,5 % rdg ± 1 digit |
POWER SUPPLY
| Power supply | via USB |
OPTIONAL ACCESSORIES
 |
FACTORY CALIBRATION CERTIFICATE |
 |
MAVOPROBE EXTENSION V071A – 3 m, V072A – 5 m, V073A – 10 m |
 |
USB ADAPTER CABLE V074A |
 |
MAVOMASTER M525G |
OPERATION
| MAVOPROBE MONITOR | |
|---|---|
| Interface | USB 2.0 with adapter cable |
| Software | MAVOSOFT |
MISCELLANEOUS
| MAVOPROBE MONITOR | |
|---|---|
| Operating temperature | -10 °C to +50 °C |
| Dimensions | 33 mm x 115 mm x 97 mm |
| Weight | 180 g |
| Scope of delivery | Operating instructions, final test certificate, adapter disc |
