Description

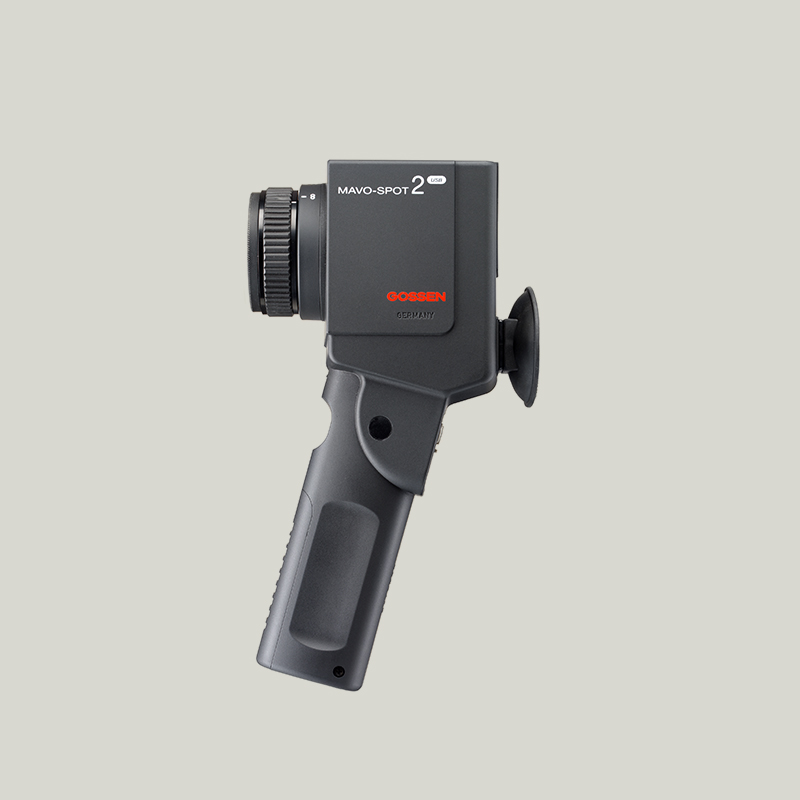

MAVOSPOT 2 USB
MEASURING FUNCTIONS
| MAVOSPOT 2 USB | |
|---|---|
| Illuminance [Lux] | 0.1 … 99 900 lx optional reflection standard, classified |
| Luminance | 0.01 cd/m² … 99 990 cd/m² / 0.01 fL … 30 000 fL |
| Measuring ranges | 4 |
| Measuring ranges selection | Automatic/Manual |
| Measuring rate | 2 per second |
| Measuring method | Distance measurement with 1° measuring angle, 1 m up to ∞, optional contact measurement with measuring probe |
| Measuring sensor | Silicon photocell with V(λ) filter |
| Measuring probe with tripod socket |
• |
| Measured value memory | Up to 1000 individual values or 10 groups with 100 individual values each (switchable) |
| Error limit – V(λ) adapted (f1‘), typical | < 3 % |
| Error limit – overall error, typical | ≤ 8 % |
| Accuracy | ±2.5 % of read out ± 2 digit |
POWER SUPPLY
| MAVOSPOT 2 USB | |
|---|---|
| Battery | 2 x 1.5V mignon , Type AA |
| Automatic battery control | • |
| Automatic shutdown | 30 s |
| Battery service life | Approx. 5000 measurements |
| Voltage supply | USB |
OPTIONAL ACCESSORIES
| MAVOSPOT 2 USB | |
|---|---|
 |
CALIBRATION CERTIFICATE H997B |
 |
PROBE FOR CONTACT MEASUREMENT M511G |
 |
REFLECTANCE STANDARD FOR LUX MEASUREMENT M512G |
 |
CLOSE-UP LENS Close-up lens 1 (51cm … 100cm) – M496G Close-up lens 2 (34cm … 50cm) – M497G |
 |
STRAY-LIGHT BAFFLE M513G |
 |
CARRYING STRAP M514G |
OPERATION
| MAVOSPOT 2 USB | |
|---|---|
| Display | multifunctional LCD |
| Back-Light | • |
| Controls | 4 keys, 1 slide switch, 1 DIP-switch |
| Interface | USB 2.0 |
| Software | GLUX 2 |
MISCELLANEOUS
| MAVOSPOT 2 USB | |
|---|---|
| Operating temperature | 0 °C to 50 °C |
| Dimensions | 190 mm x 90 mm x 57 mm |
| Weight | 400 g without battery |
| Delivery content | Aluminum case, batteries, operating instructions, protective filter, USB cable, GLUX2 Software on CD ROM, protective lens cap, protective eyepiece cap |
